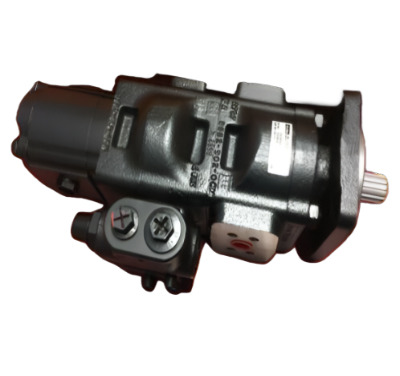

20/401900 Triple Hydraulic Pump
Key Information
- Rotation: Counter-Clockwise (looking from shaft end)
- 1” Diameter 15T SAE B-B splined shaft
- SAE B 4 hole mounting flange
- Front Pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
- Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
Replaces the following JCB part numbers
Weight
Machine Fitment
- PUMP MAIN HYDRAULIC M771429 M1004463 537 9802/7860
- PUMP MAIN HYDRAULIC M771429 M1004463 532LE SWAY 9802/7860
- PUMP MAIN HYDRAULIC M771429 M1004463 537 SWAY 9802/7860
- PUMP MAIN HYDRAULIC M771429 M1004463 532 SWAY 9802/7860
- PUMP MAIN HYDRAULIC M771429 M1004463 532LE 9802/7860
- PUMP MAIN HYDRAULIC M771429 M1004463 537LE 9802/7860
- PUMP MAIN HYDRAULIC M771429 M1004463 532 9802/7860
- PUMP MAIN HYDRAULIC M771429 M1004463 537LE SWAY 9802/7860
