Parker Hannifin

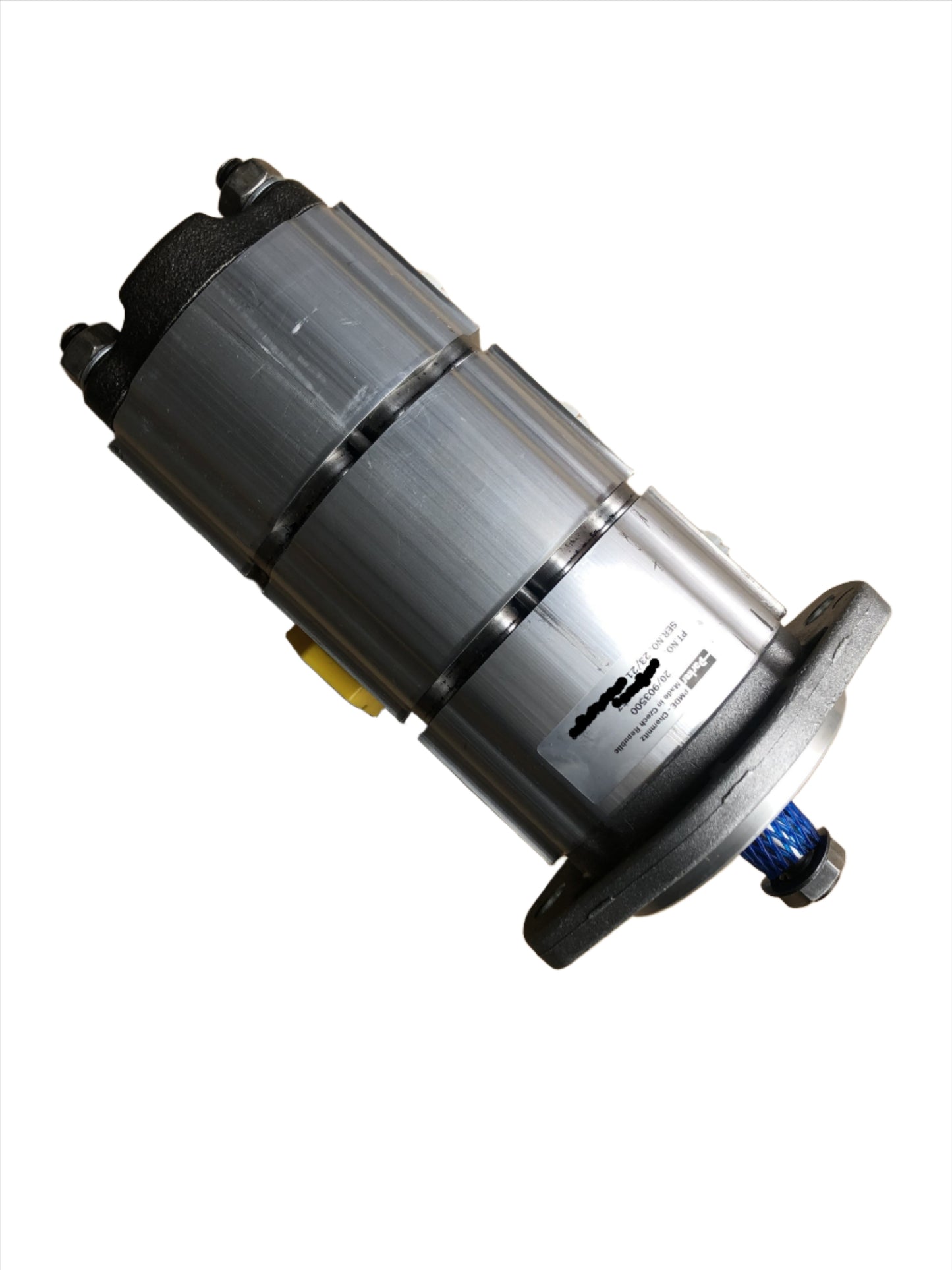

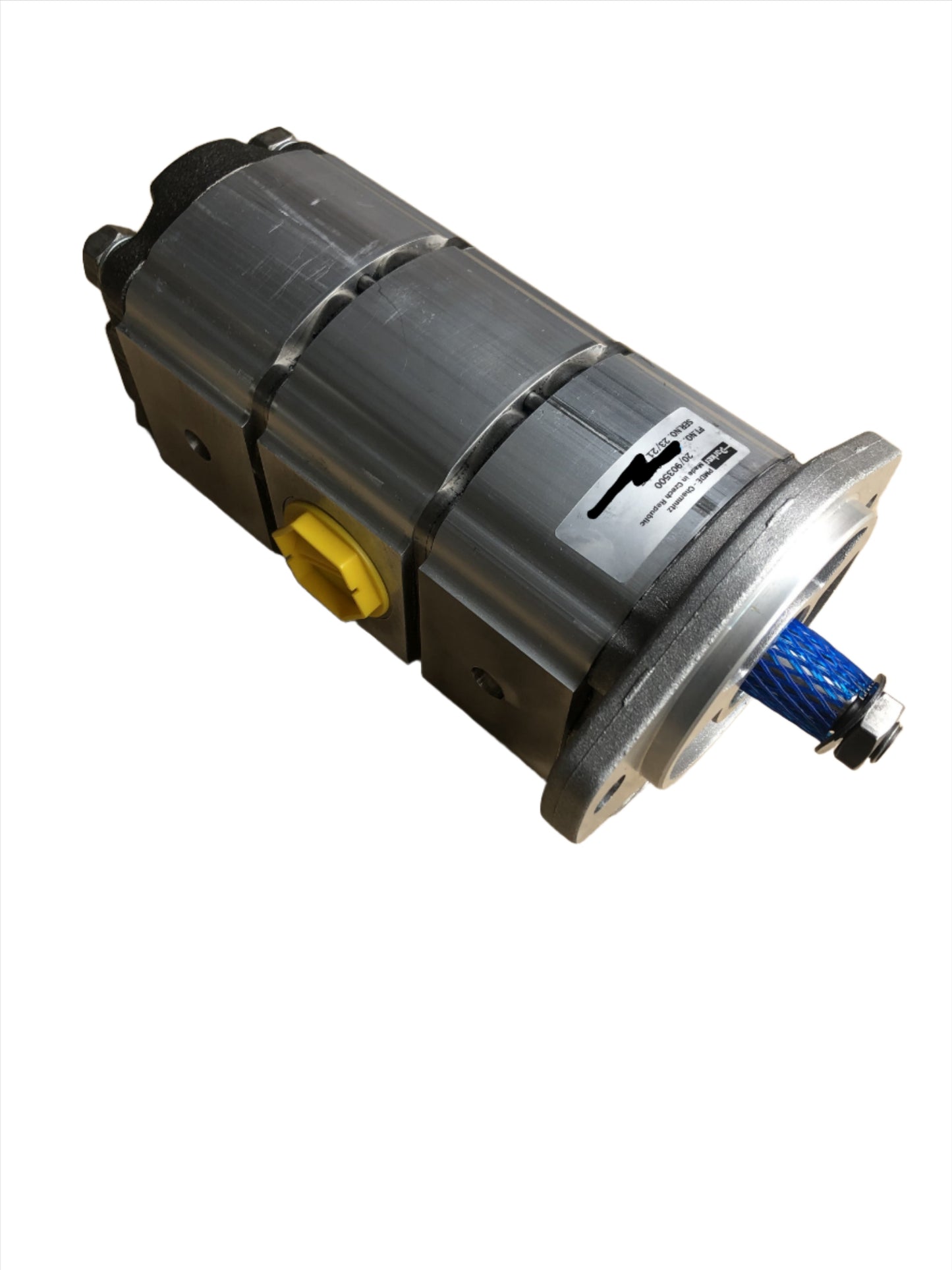

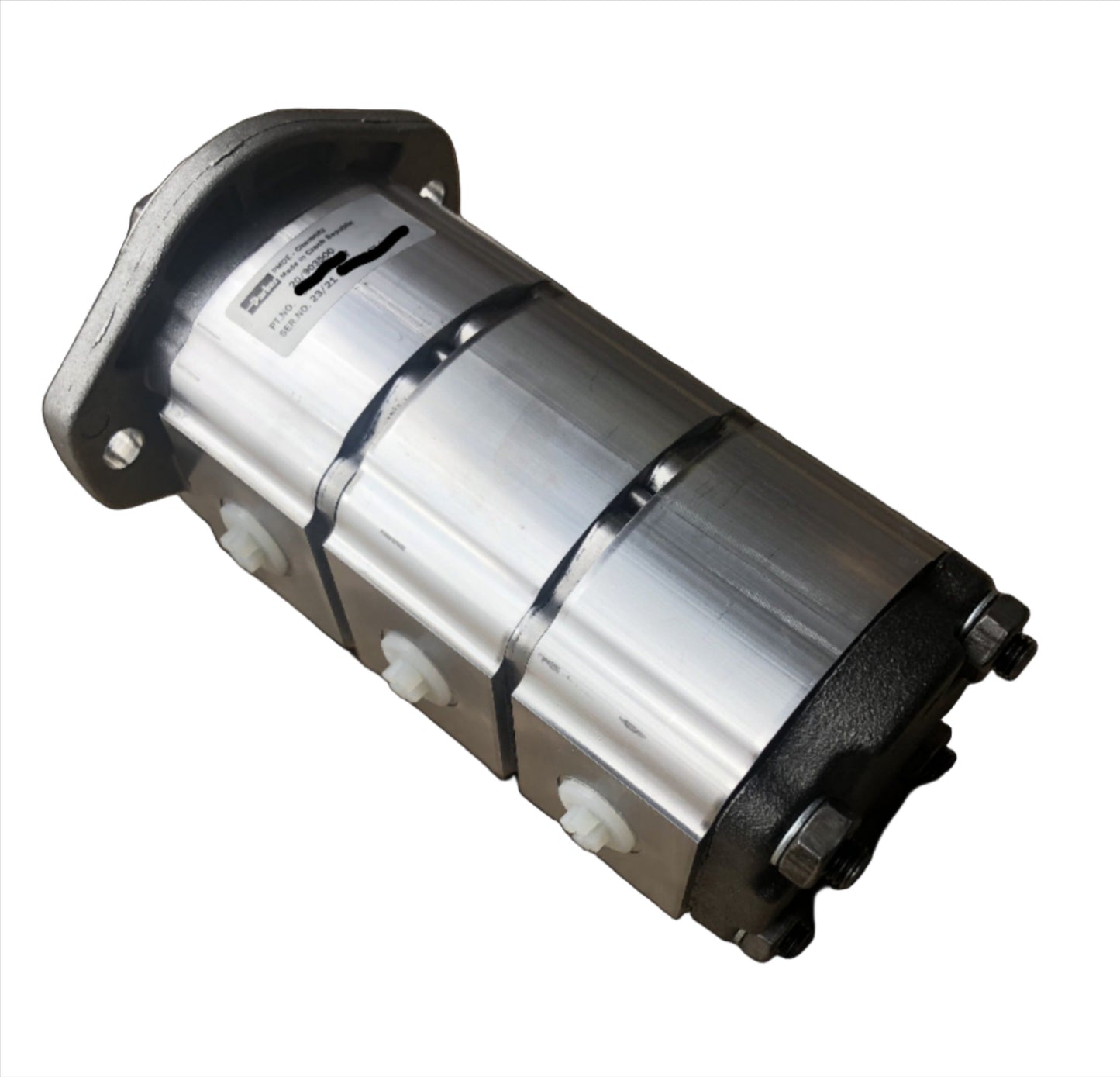

20/903500 Genuine Parker / JCB Triple Hydraulic Pump 4.5 + 6 + 6 CC/REV

20/903500 Genuine Parker / JCB Triple Hydraulic Pump 4.5 + 6 + 6 CC/REV

Low stock: 3 left

Regular price $1,184.52 AUD
Regular price $2,526.83 AUD Sale price $1,184.52 AUD
Sale Sold out
Tax included.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

Key Information

  • Rotation: Clockwise (looking from shaft end
  • Front Pump displacement: 4.5 cc/rev (4.5L/Min per 1000 rpm)
  • Middle Pump displacement: 6 cc/rev (6L/Min per 1000 rpm)
  • Rear Pump displacement: 6 cc/rev (6L/Min per 1000 rpm)
  • Pump port info:
  • Inlet 1 1/16" UNF
  • All outlets 9/16" UNF

Replaces the following JCB part numbers

  • 20/903500

Weight

  • 8KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC M720001 801.4 9802/5403
  • PUMP, MAIN HYDRAULIC 801.5 Pro Dig 9802/5403
  • PUMP, MAIN HYDRAULIC 801.6N 9802/5403
  • PUMP, MAIN HYDRAULIC 801.6 9802/5403
  • PUMP, MAIN HYDRAULIC 801.5 9802/5403
  • KIT, PUMP SINGLE INLET PUMPS 801 9802/5400
