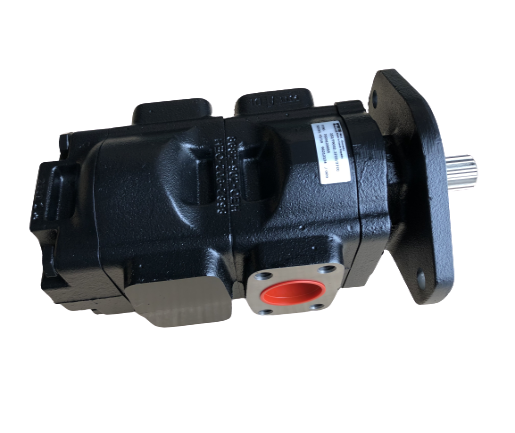

20/925366 Genuine Parker / JCB 214 Twin Hydraulic Pump
Parker Hannifin

20/925366 Genuine Parker / JCB 214 Twin Hydraulic Pump

$1,155.24 ex VAT$5,068.40 $1,155.24 inc VAT$5,068.40$1,155.24 inc VAT $1,155.24 ex VAT

Only 5 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Weight

  • 26KG

Replaces the following JCB part numbers

  • 20/925366
  • use 181 ( 33 + 23 cc/Rev)
