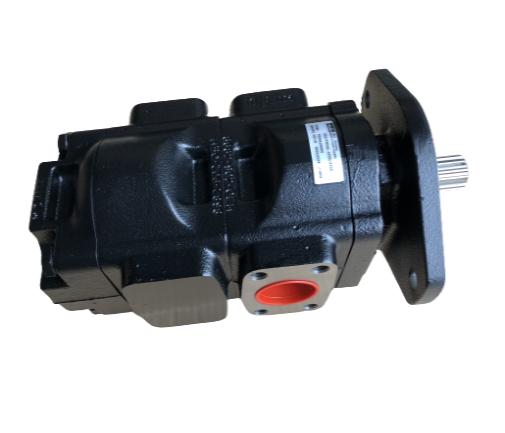

Key Information
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
- Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 250 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
Machine Fitment
- PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
- PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CXM New Zealand MILITARY 9812/0050
- PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX-PC Precision Control (Servo) 9812/0010
- PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T-PC Precision Control (Servo) 9812/0010
- PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS AWS 9812/0010
- PUMP 36/29 CCR MAIN HYDRAULIC 100 HP BUILDS 4CXM (FRANCE) FRENCH MILITARY 9812/0070
- PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX 9812/0010
- PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS-PC Precision Control (Servo) 9812/0010
- ENGINE TRANSMISSION Package 475/M1504 MISCELLANEOUS . 9802/1010
- ENGINE TRANSMISSION Package 475/M1005 MISCELLANEOUS . 9802/1010
- LOOSE PARTS Package 475/M4146 MISCELLANEOUS . 9802/1010
