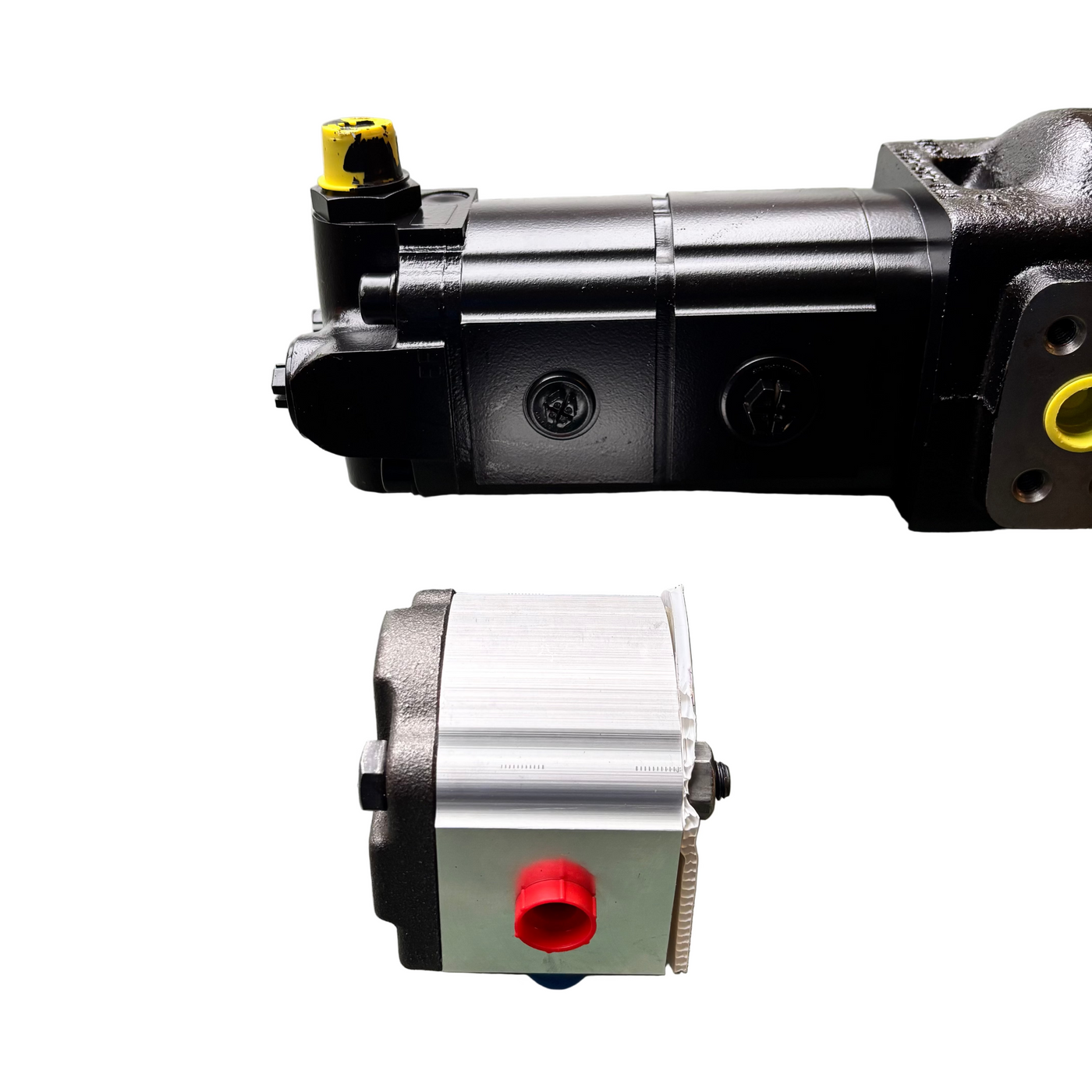

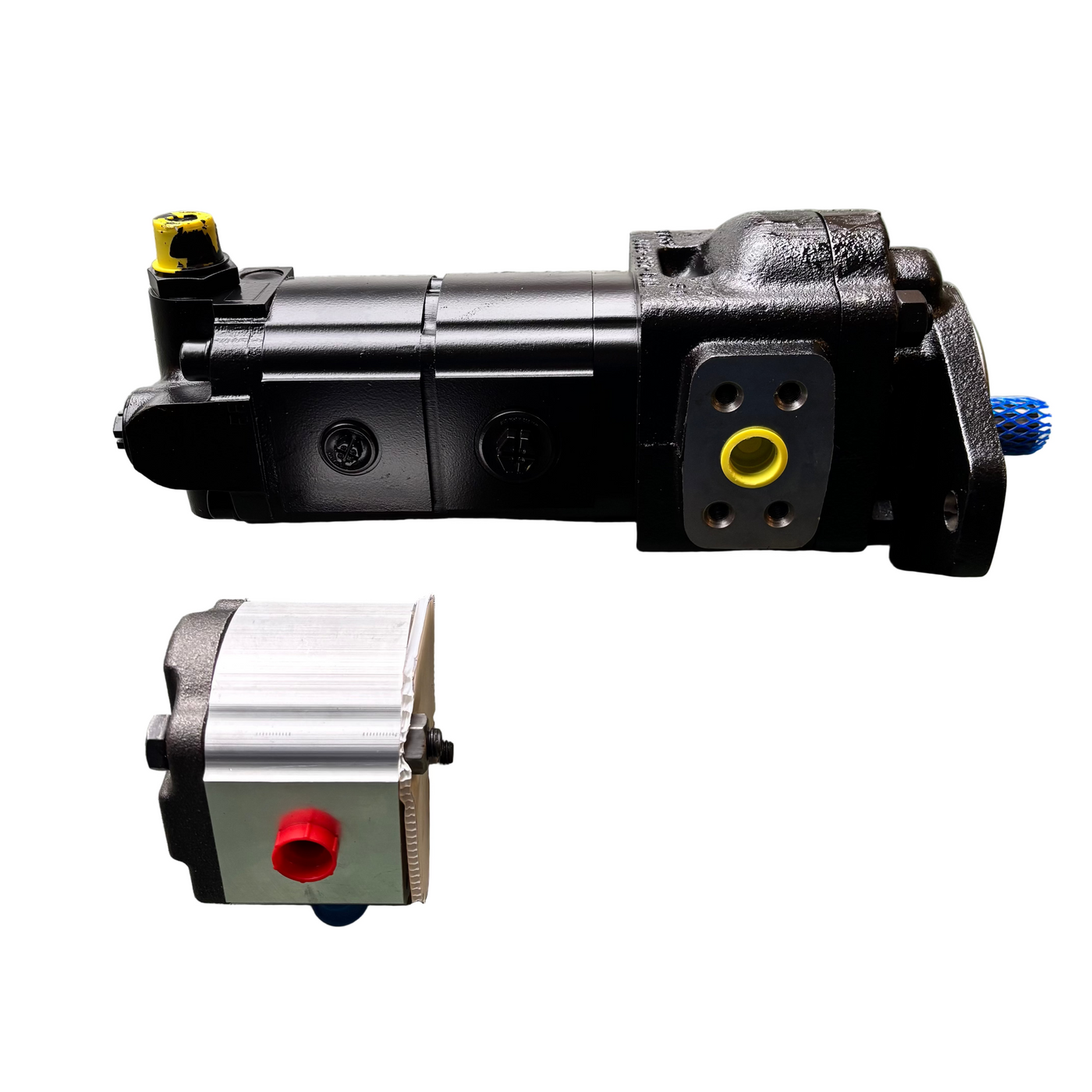

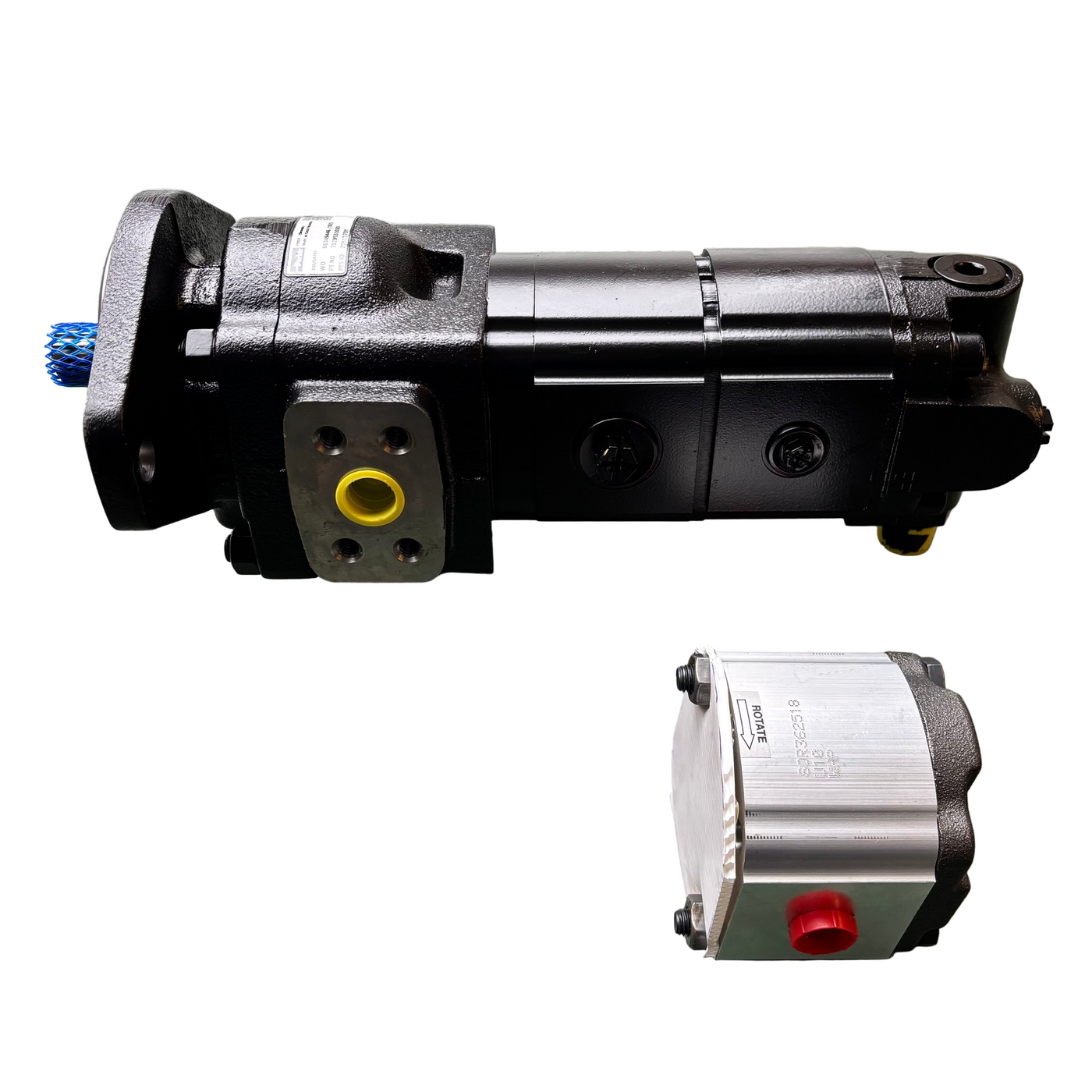

334/2322 Hydraulic Pump section
Key Information.
Pump displacement: 12 cc/rev

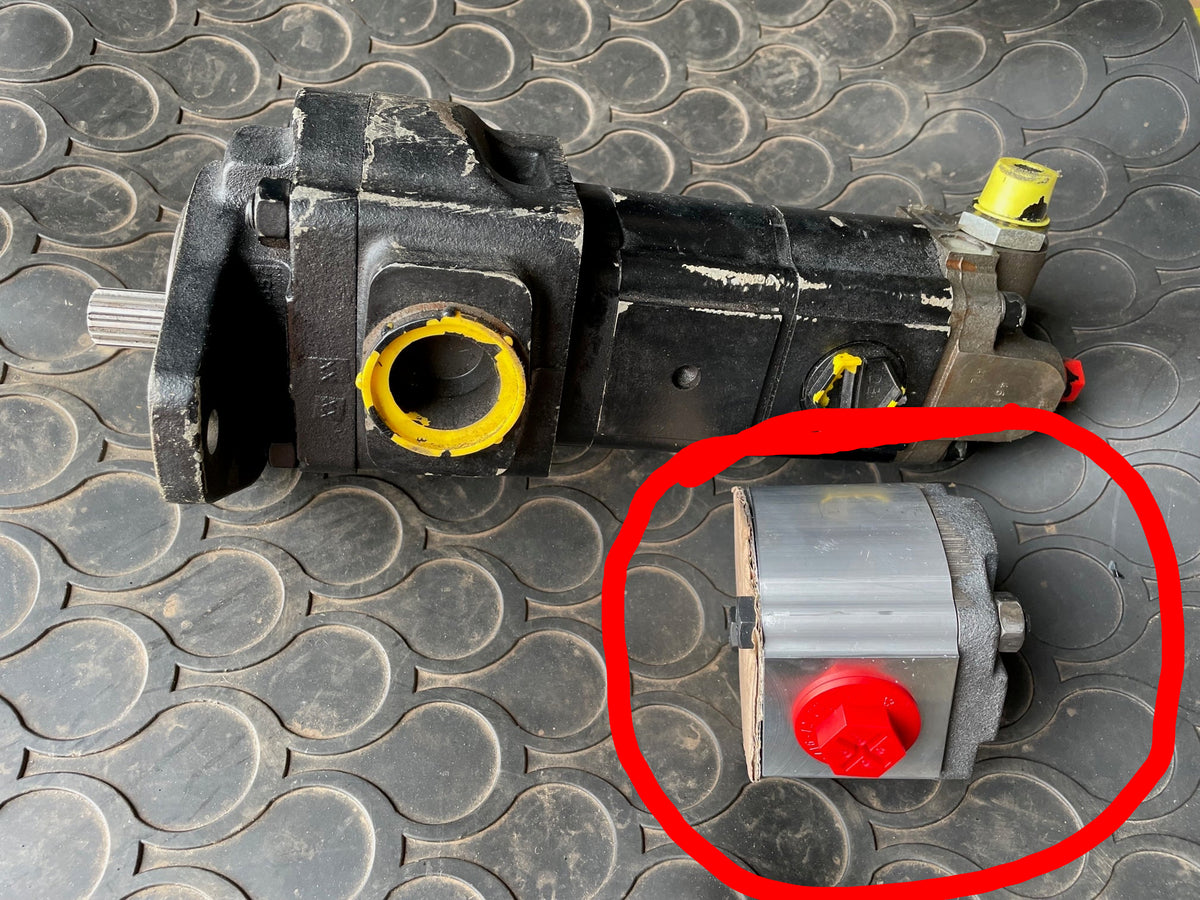

Replaces rear pump section for the following JCB part numbers
333/W2430
333/W2431
333/S7584
332/S9644
333/S7578
332/S4797
PRODUCTS AFFECTED:
TLT 25D (Serial no's 01539000 - 01541999)
TLT 30D (Serial no's 01539000 - 01541999)
TLT 30D 4x4 (Serial no's 01539000 - 01541999)
TLT 35D (Serial no's 01539000 - 01541999)
TLT 35D 4x4 (Serial no's 01539000 - 01541999)
Weight
- 5KG
When reassembling pump 4 x bolts torque to 48Nm +/- 4Nm
IMPORTANT NOTE These pumps seem to be a common failure point on JCB telehanders . We can also offer the no cost option of removing the 9/16"UNF test point port - which is where the casting seems to crack. Please contact our sales department if you wish to order a pump without the test point port - Delivery will be around 7 working Days
Full specifications are available on request.
