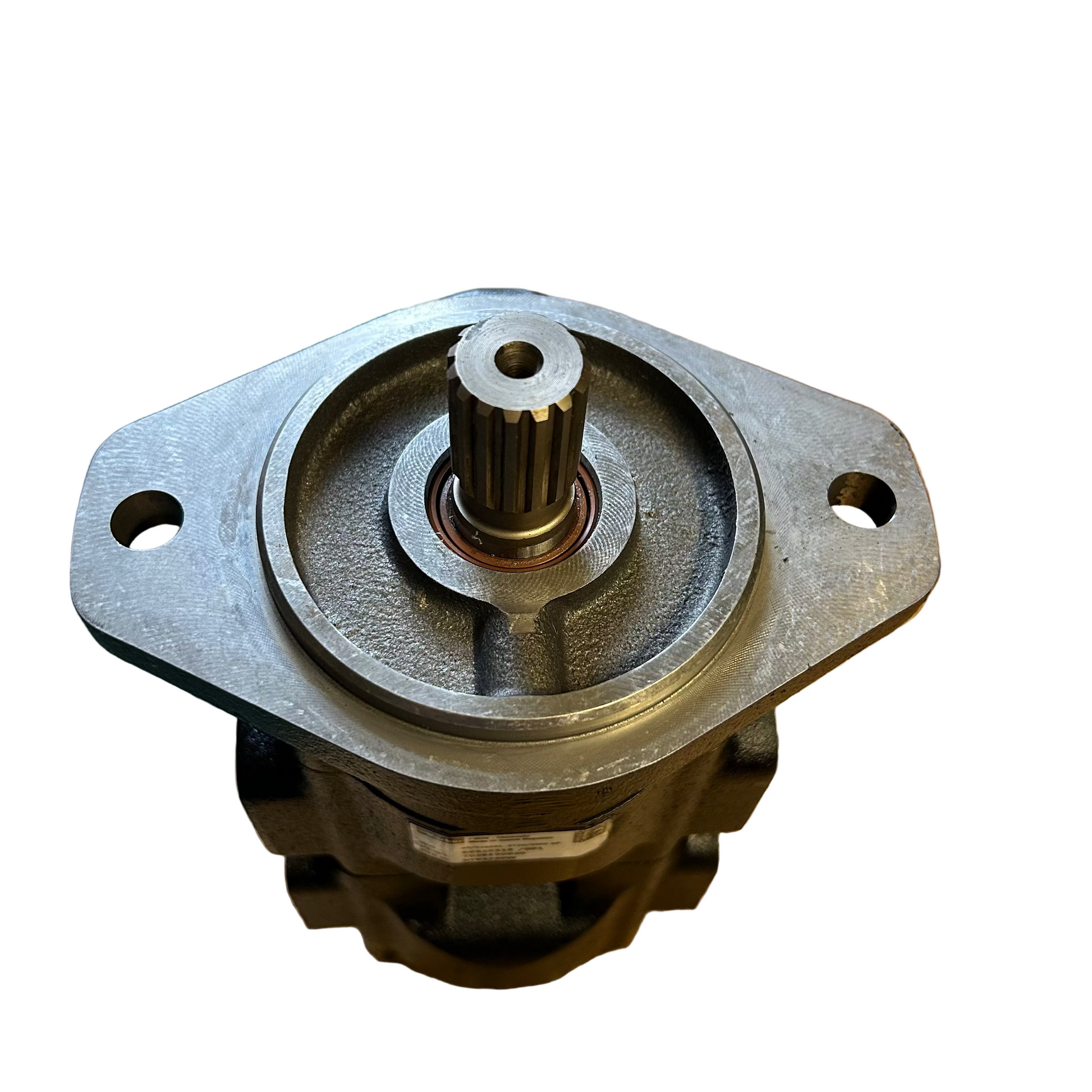

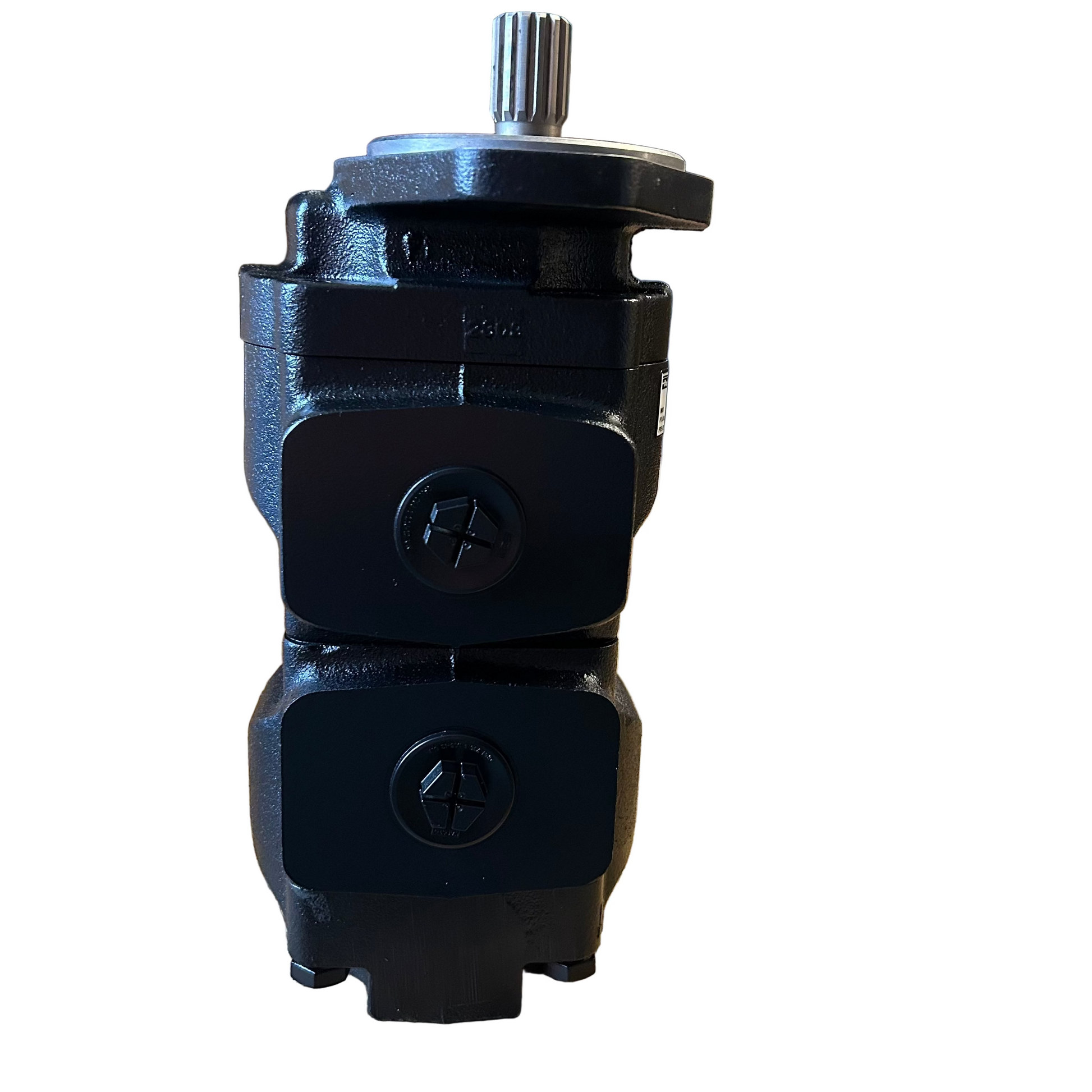

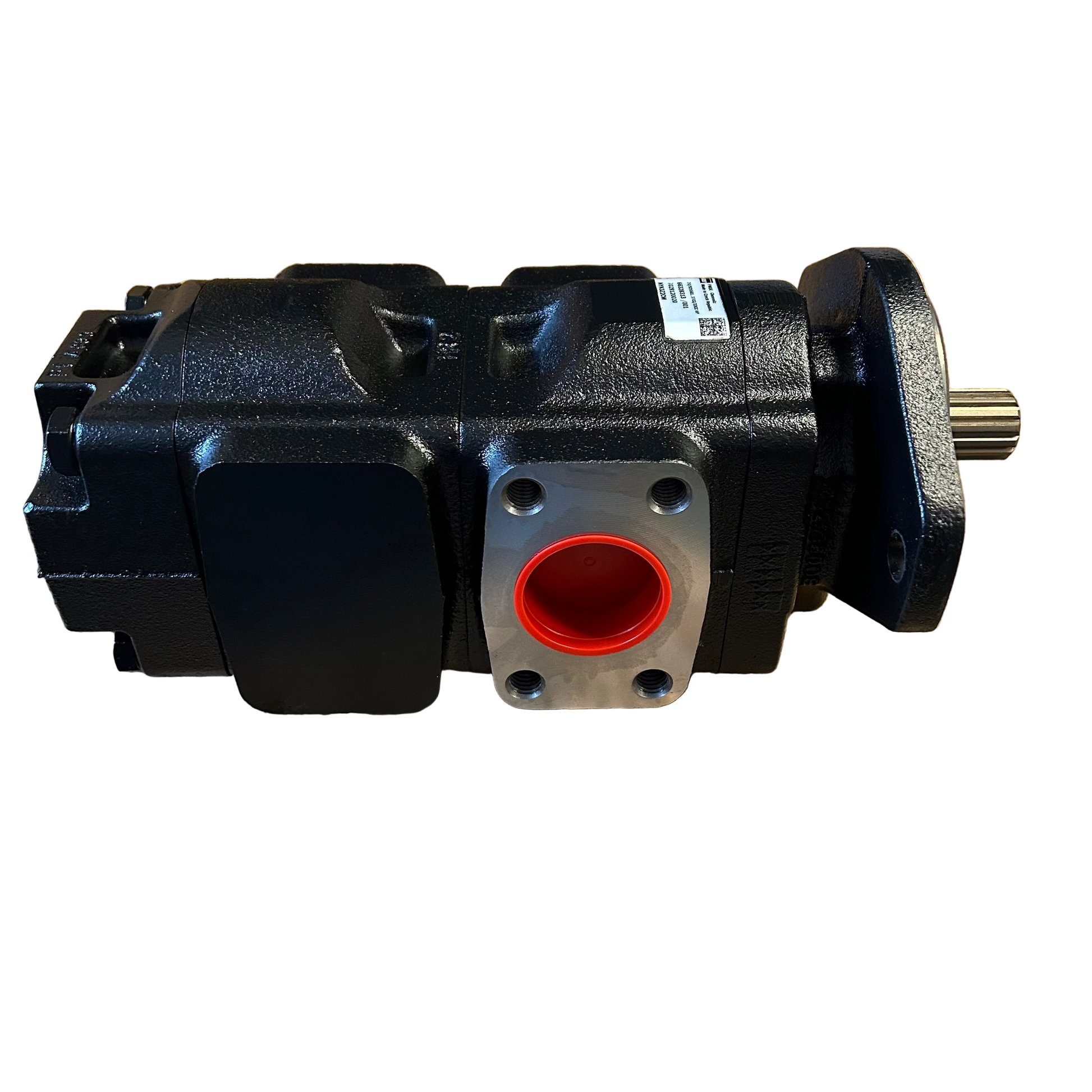

333/G5390 Genuine Parker / JCB 3CX Twin Hydraulic Pump 7029120077
333/G5390 Genuine Parker / JCB 3CX Twin Hydraulic Pump 7029120077
333/G5390 Genuine Parker / JCB 3CX Twin Hydraulic Pump 7029120077
Parker Hannifin

333/G5390 Genuine Parker / JCB 3CX Twin Hydraulic Pump 7029120077

$1,733.56 ex VAT$2,838.49 $1,733.56 inc VAT$2,838.49$1,733.56 inc VAT $1,733.56 ex VAT

Only 2 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 1 1/16”-12 UNF threaded
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 333/G5390

Weight

  • 26KG

Machine Fitment

  • PUMP 36/2 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Easycontrol. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Direct Control. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Easycontrol. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Easycontrol. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Direct Control. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Direct Control. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Easycontrol. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Direct Control. 2WS 9822/0650
  • PUMPS GEAR 36/29ccr 3CXD14M2NM TIER 2 9822/0835
  • PUMPS GEAR 36/29ccr 3CXD14M3NM TIER 3 9822/0835
