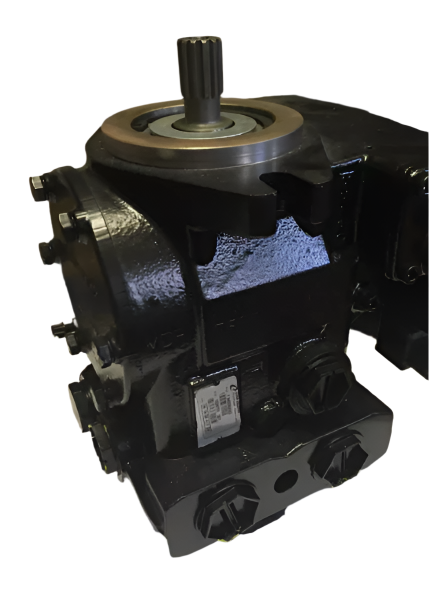

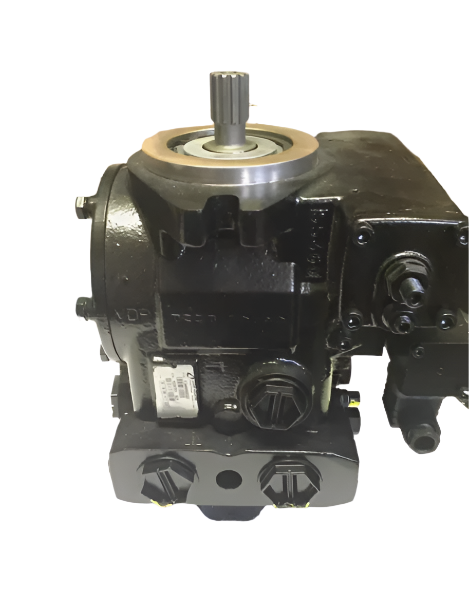

*******NEW - OLD STOCK ********HYDRAULIC PUMP WITH 12 MONTH WARRANTY
12V Proportional Elec. control 250Bar.
SPECIFICATIONS

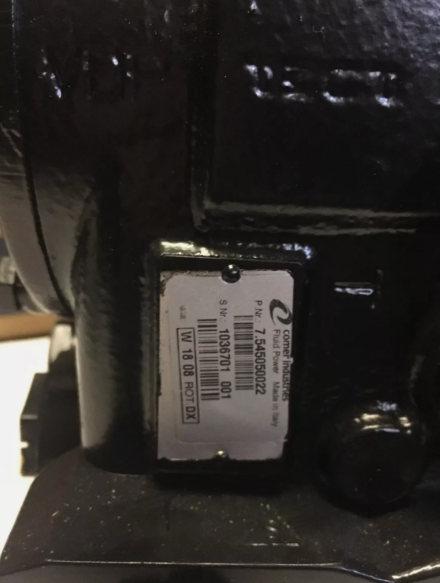

POCLAIN REF PM45-52-S3-P12-10-28-27-R26-11-A0000.
CLOCKWISE ROTATION. 700 - 3400RPM OPERATING RANGE
COULD BE USED FOR MANY CLOSED LOOP HYDRAULIC APPLICATIONS THAT REQUIRE 20-60HP SUCH AS CONVEYOR DRIVES , MARINE PROPELLOR DRIVES , CROP SPRAYERS ETC ETC.
50cc/rev VARIABLE FLOW IN BOTH DIRECTIONS (A-B OR B-A)
150L/MIN OUTPUT AT 3000RPM
CONTROL 12V PROPORTIONAL SOLENOID 0-50cc/rev
MAX CONT.PRESSURE 250 BAR. PEAK PRESSURE 350BAR
HIGH PRESSURE SERVICE LINE RELIEFS 275BAR SETTING
MOUNTING FLANGE SAE B 2 HOLE.
SHAFT 7/8" 13T SAE B. MAX TORQUE 220Nm
REAR THRU DRIVE SAE A.
PORTS 1" BSP THREADED.
BUILT IN BOOST PUMP 11cc/REV @ 26bar
Full specifications are available on request.
