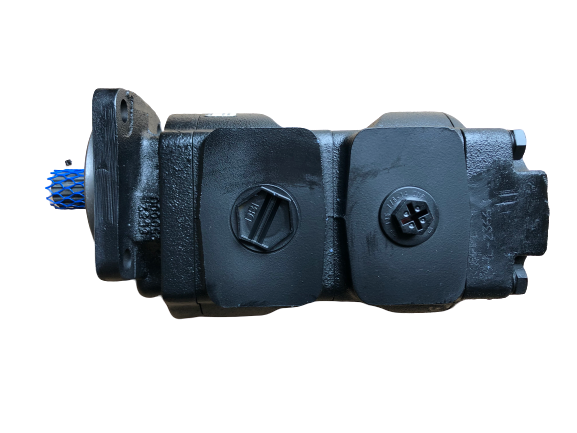

Key Information
- Rotation: Counter-Clockwise (looking from shaft end)
- 1” Diameter 15T Splined shaft
- SAE B 4 hole mounting flange
- Front pump displacement: 33cc/rev (33L/Min per 1000 rpm)
- Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 275 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 400 Nm
Replaces the following JCB part numbers
Weight
Machine Fitment
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 35 Manual shift 35KPH
- PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 20 Power shift 20KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 35 Power shift 35KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 4CN444 AWS 9802/9510
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 30 Power shift 30KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 4C444 AWS 9802/9510
- PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 20 Manual shift 20KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 20 Power shift 20KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 PS 30 Sideshift AWS 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 PS 35 Sideshift AWS 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 30 Manual shift 30KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 20 Servo Command 20KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 20 Manual shift 20KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 35 Power shift 35KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 4CX444 Sideshift AWS 9802/9510
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 35 Servo Command 35KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 MS 35 Manual shift 35KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 3CX444 Sideshift AWS 9802/9520
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 30 Manual shift 30KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 30 Servo Command 30KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 35 Manual shift 35KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 SP 35 Servo Command 35KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 4CX444 SUPER Sideshift AWS 9802/9510
- PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 30 Power shift 30KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 MS 30 Manual shift 30KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 30 Servo Command 30KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 4CXSM444 Sideshift AWS 9802/9510
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 20 Servo Command 20KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 35 Servo Command 35KPH 9802/9500
- PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 SP 30 Servo Command 30KPH 9802/9500
P
- UMP, MAIN HYDRAULIC 4074 4CXSM444 SUPER Sideshift AWS 9802/9510
