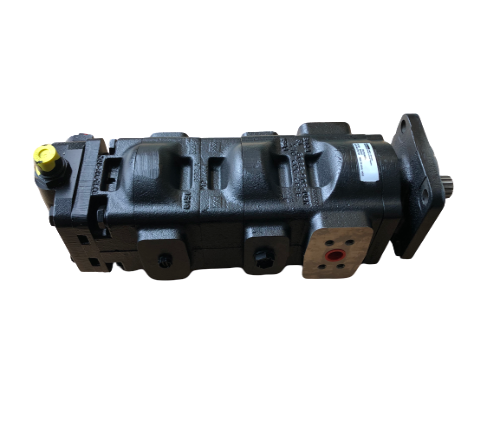

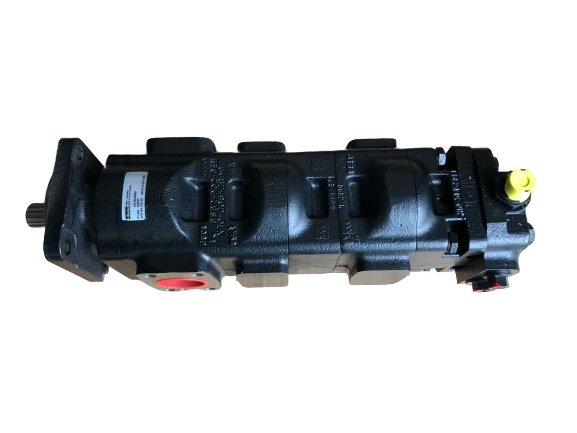

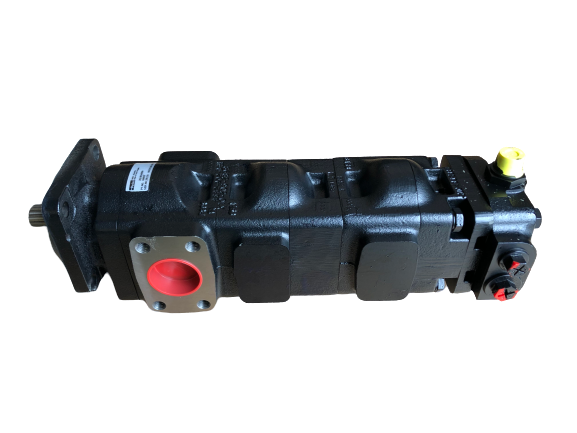

20/914900 Genuine Parker / JCB Loadall Triple Hydraulic Pump 36 + 16 + 19 CC/REV

Key Information

• Rotation: Counter Clockwise (looking from shaft end)
• 1” Diameter 15T SAE B-B splined shaft
• SAE B 4 hole mounting flange
• Front Pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
• Middle Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
• Rear Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)

Replaces the following JCB part numbers

• 20/914900  - 8493T


Weight

• 38KG

Machine Fitment

• PUMP,MAIN HYDRAULIC M771429 530 9802/7850

• PUMP,MAIN HYDRAULIC M771429 530 SWAY 9802/7850

• PUMP,MAIN HYDRAULIC M771023 540 9802/7850
