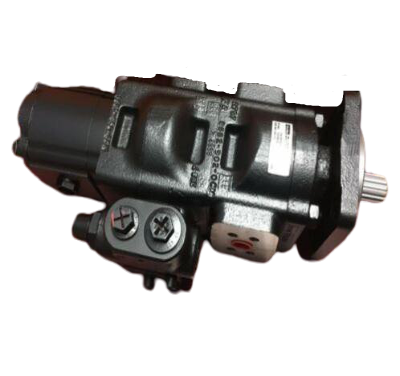

20/925588 Genuine Parker / JCB Loadall Triple Hydraulic Pump 29 + 19 + 16 CC/REV

Key Information

• Rotation: Counter -Clockwise (looking from shaft end)
• 1” Diameter 15T SAE B-B splined shaft
• SAE B 4 hole mounting flange
• Front Pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
• Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
• Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

• 20/925588 - 8965C -20/918500


Weight

• 38KG

Machine Fitment

• PUMP,MAIN HYDRAULIC .535-125 HiViZ Tier 2 9812/7100

• PUMP,MAIN HYDRAULIC .540-140 TIER 3 9812/7650

• PUMP,MAIN HYDRAULIC 535-125 Tier 2 9812/7040

• PUMP,MAIN HYDRAULIC 535-140 HiViZ Tier 2 9812/7100

• PUMP,MAIN HYDRAULIC 540-140 Tier 2 9812/7040

• PUMP,THREE STAGE MAIN HYDRAULICS 110 L/MIN 536-60 9812/7150

• PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) 535-140 HiViZ DIESELMAX ENGINE 9812/7400

• PUMP,MAIN HYDRAULIC 535-140 Tier 2 9812/7040

• PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) 535-125 HiViZ DIESELMAX ENGINE 9812/7400

• PUMP,MAIN HYDRAULIC .535-140 HiViZ Tier 2 9812/7100

• PUMP,MAIN HYDRAULIC 535-125 HiViZ Tier 2 9812/7100

• PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) .535-140 HiViZ DIESELMAX ENGINE 9812/7400

• PUMP,MAIN HYDRAULIC 540-140 TIER 3 9812/7650

• PUMP,MAIN HYDRAULIC 550-140 9812/7450

• PUMP,THREE STAGE MAIN HYDRAULICS 110 L/MIN 536-60 TIER 2 9812/7070

• PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) .535-125 HiViZ DIESELMAX ENGINE 9812/7400

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 531-70 TIER 2 9812/7060

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 541-70 TIER 2 9812/7060

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 531-70 SWAY TIER 2 9812/7060

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 536-70 9812/7075

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 541-70 Tier 3 9812/7300

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN .536-70 9812/7075

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 535-95 Tier 2 9812/7000

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 541-70 SWAY TIER 2 9812/7060
• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 531-70 Tier 3 9812/7300

• PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 535-95 SWAY Tier 2 9812/7000

• PUMP,(THREE STAGE) MAIN HYDRAULICS FITTINGS & MOUNTINGS (110 L/MIN) 536-60 TIER 2 9812/7070

• PUMP FITTINGS & MOUNTINGS (THREE STAGE, 110L/MIN) .535-140 HiViZ Tier 2 9812/7100

• PUMP FITTINGS & MOUNTINGS (THREE STAGE, 110L/MIN) 535-125 HiViZ Tier 2 9812/7100

• PUMP,(THREE STAGE) MAIN HYDRAULICS FITTINGS & MOUNTINGS 536-60 9812/7150
