Parker Hannifin

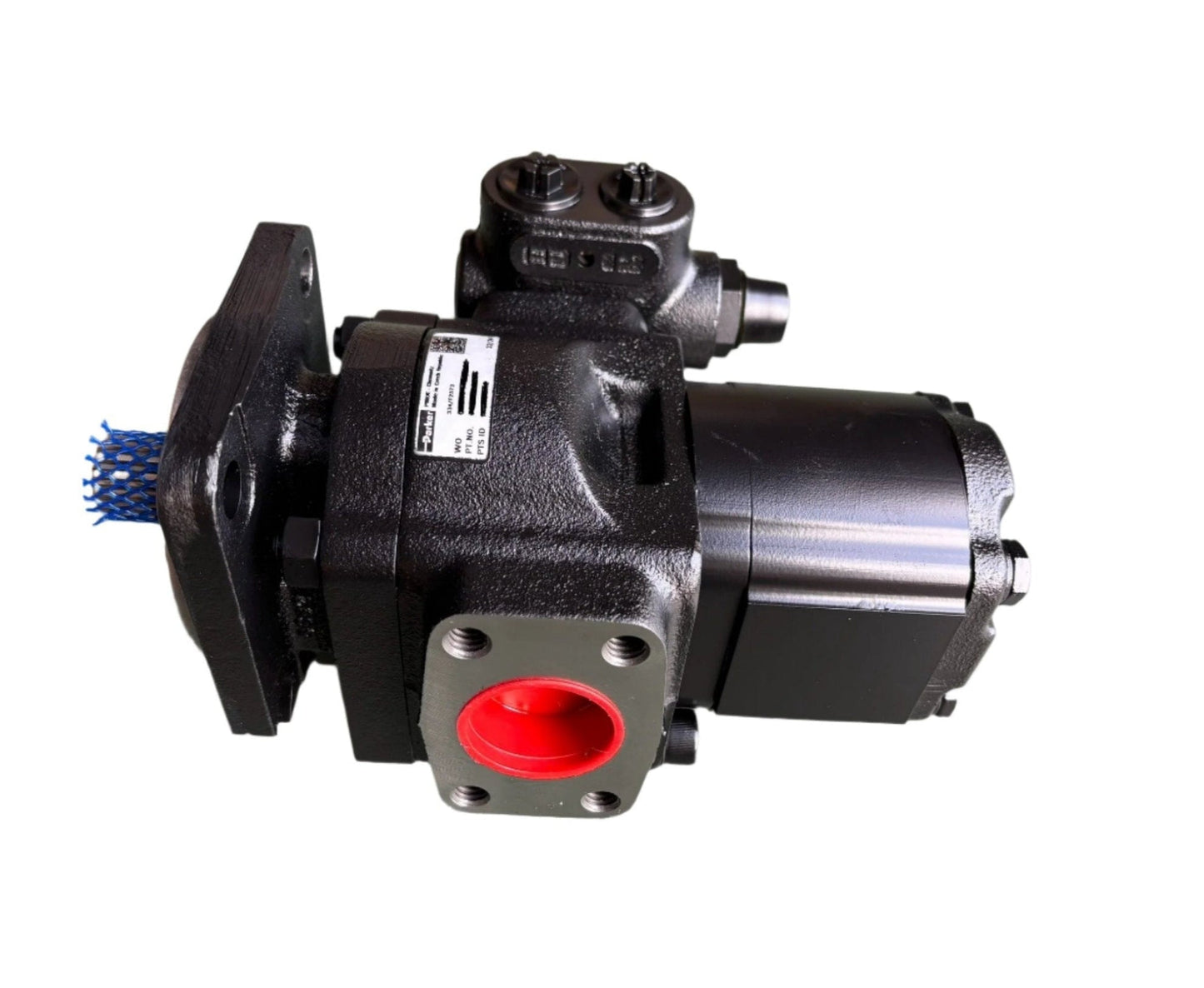

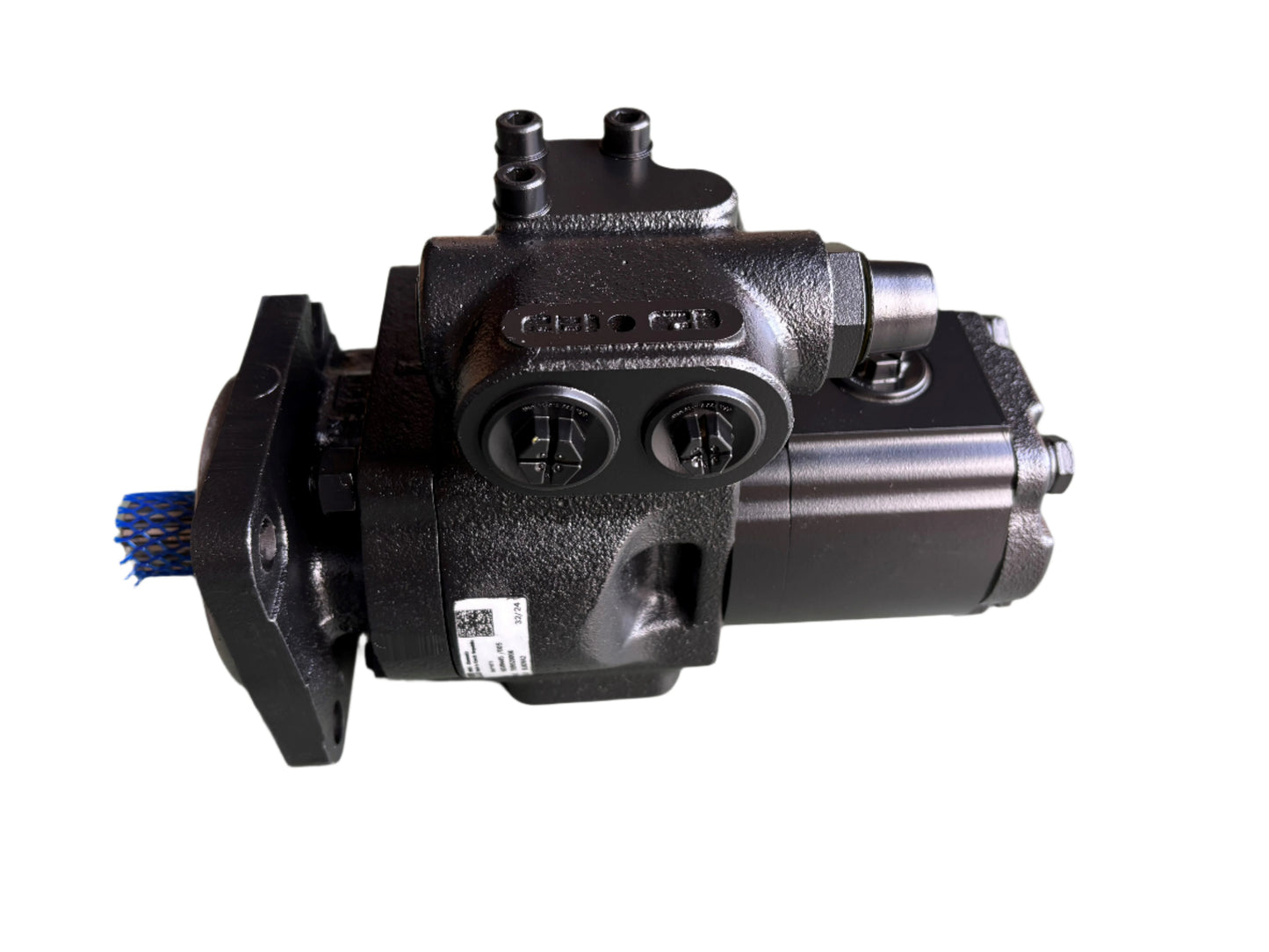

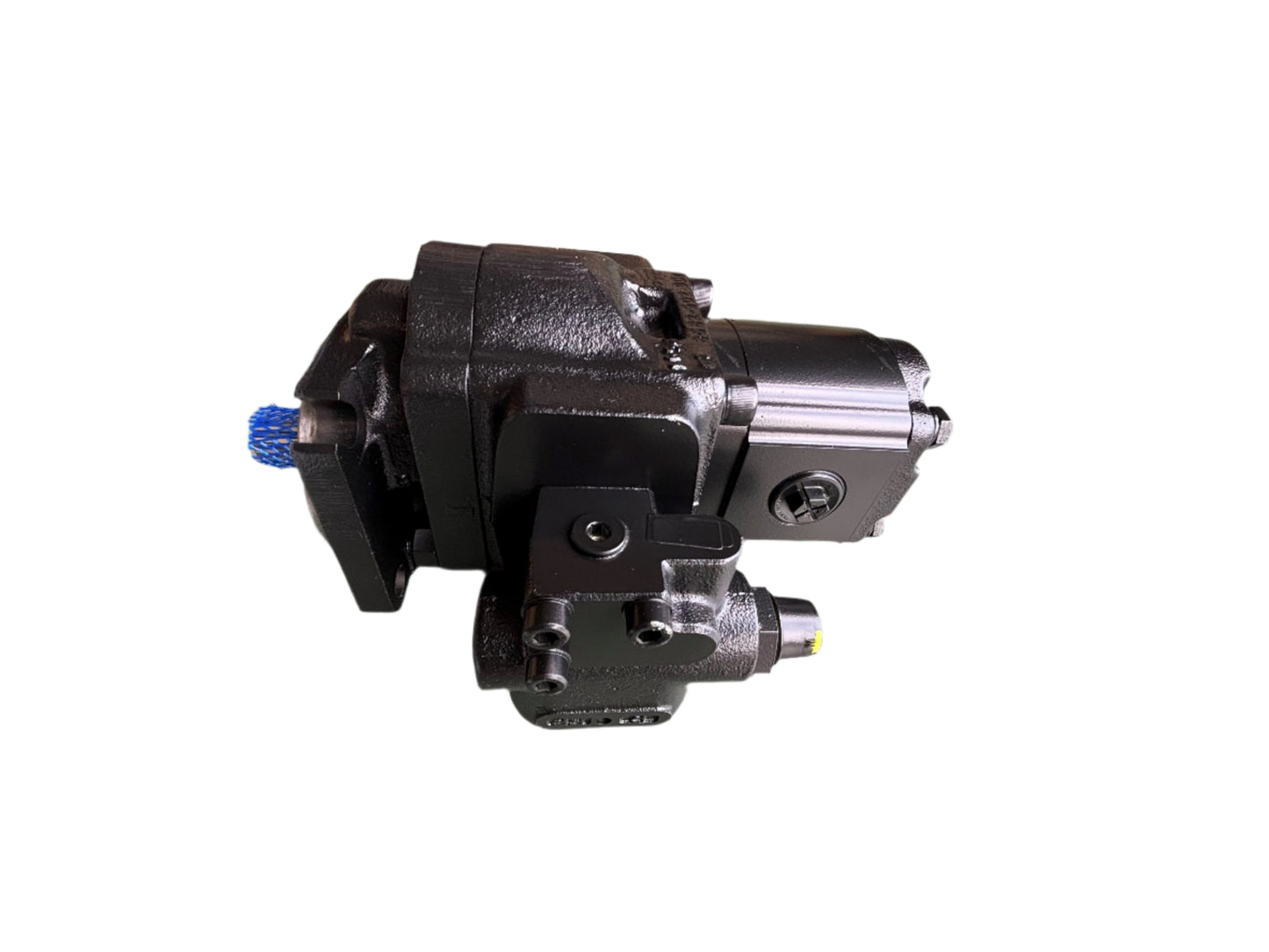

334/F2573 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV

334/F2573 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV

Low stock: 2 left

$1,601.56 AUD
$3,164.89 AUD $1,601.56 AUD
Sale Sold out
Tax included.

PRICE EXCL. VAT

  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE spline16/32 Pitch
  • SAE B 4 hole mounting flange - 2 holes with cutout
  • Front pump displacement: 36 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm
  • Comes complete with LS priority valve

Replaces the following JCB part numbers

  • 334/F2573

Weight

  • 18KG

Machine Fitment

PUMP/MOTOR INSTALLATION ASSEMBLIES 80 L/Min 2 STG  14/06/2015  526-56 9822/0090

PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE   531-70WM 9822/0090

PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE   541-70WM ALL 541-70 MODELS 9822/0090

PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE   536-70AG+ 9822/0090

PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 2 STAGE, 80L/MIN 15/06/2015   526-56 9822/0090

    View full details
