Parker Hannifin

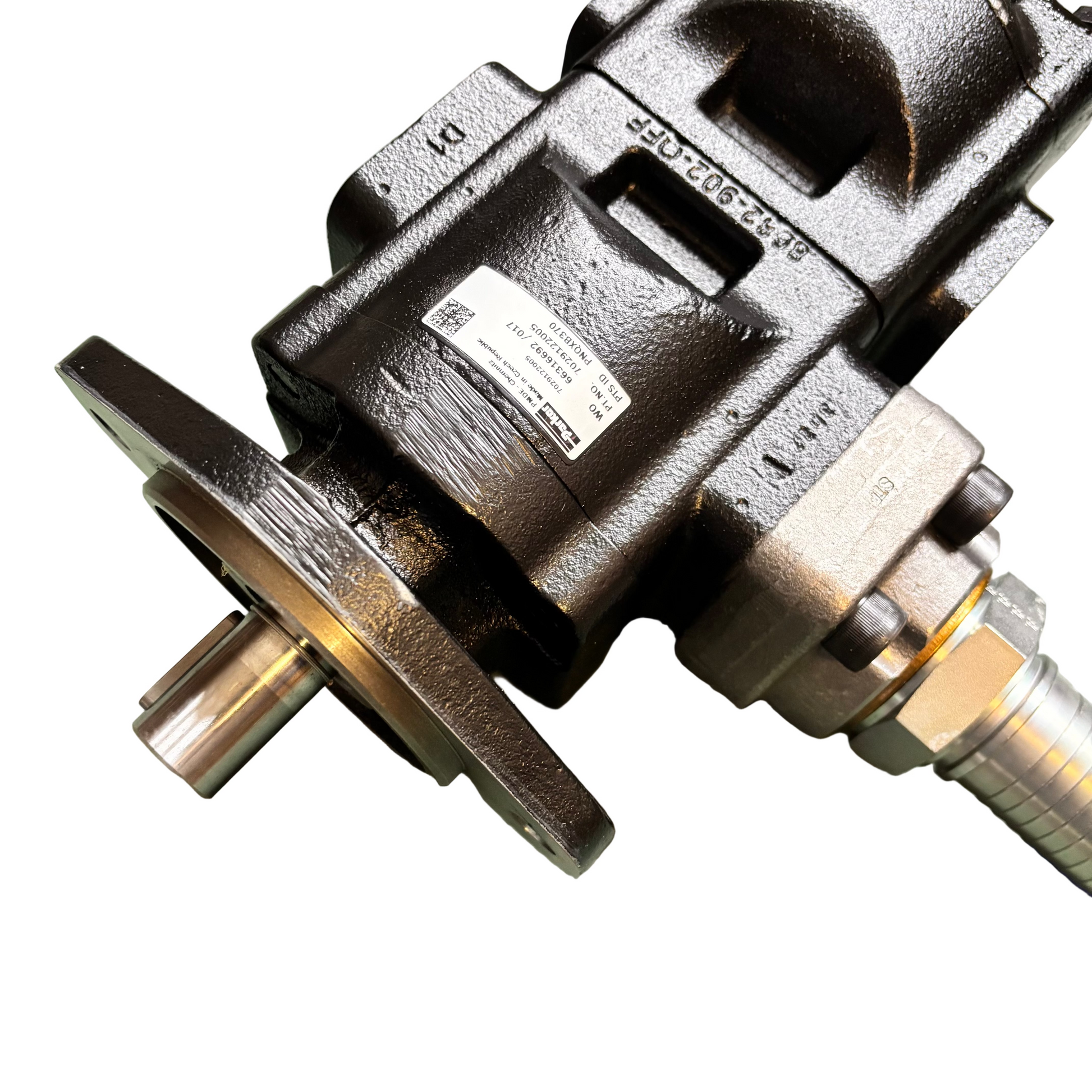

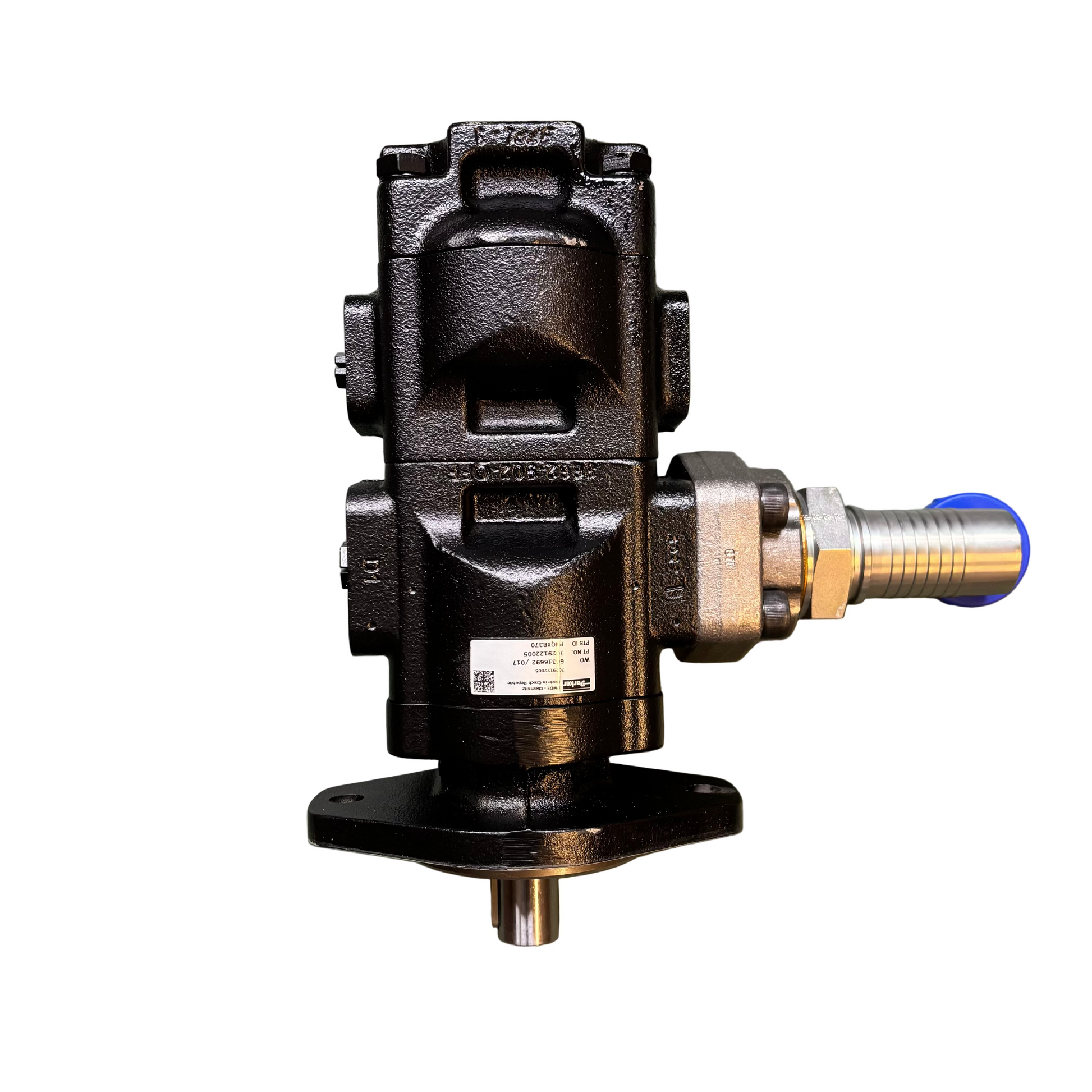

919/27100 KIT Genuine Parker/JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

919/27100 KIT Genuine Parker/JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

Low stock: 5 left

$1,929.66 AUD
$3,641.00 AUD $1,929.66 AUD
Sale Sold out

PRICE EXCL. VAT

  • Super Fast Worldwide Shipping Via Trusted Couriers
  • Make Significant Savings Against OEM Parts
  • Contact Our Expert Sales Team For Product Advice
  • Bulk Purchase Discount Available On All Products. Contact Our Sales Team To Discuss Your Requirements.
Kit to replace old Black cab pumps  919/27100 and 919/72400

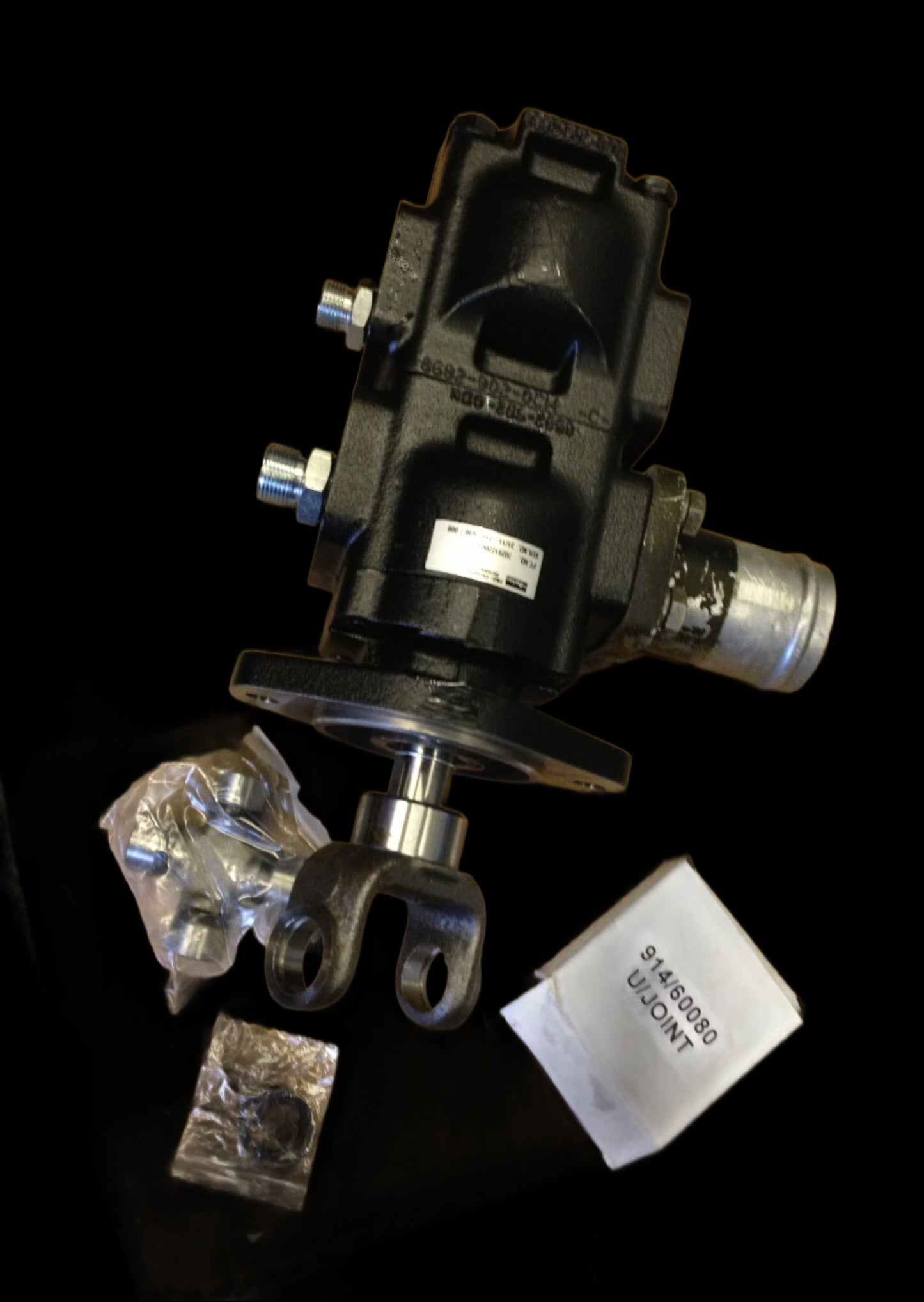

Kit Contents ;
1 x Universal Joint Cross Piece JCB 914/60080
1 x 1" Coupling Half  JCB 914/70045
3 x UNF - BSP Fittings ( 01318, 01319, 01324 with O rings )
1 x 2" Suction flange - 1 1/2" BSP Female thread O ring included (BFX-306-G24-W1)
1 x 1 1/2" BSP Male - 1 1/2" Hose Tail (HCS-38-AGR-24-M-W66A)

This Kit replaces the older Blackcab Hamworthy/David Brown hydraulic pump for the latest Parker pump  - it is noticeably smoother and quieter running and gives considerable efficiency benefits for the operator.



Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter parallel keyed shaft
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Weight

  • 28KG

Replaces the following JCB part numbers

  •   919/27100    919/72400
